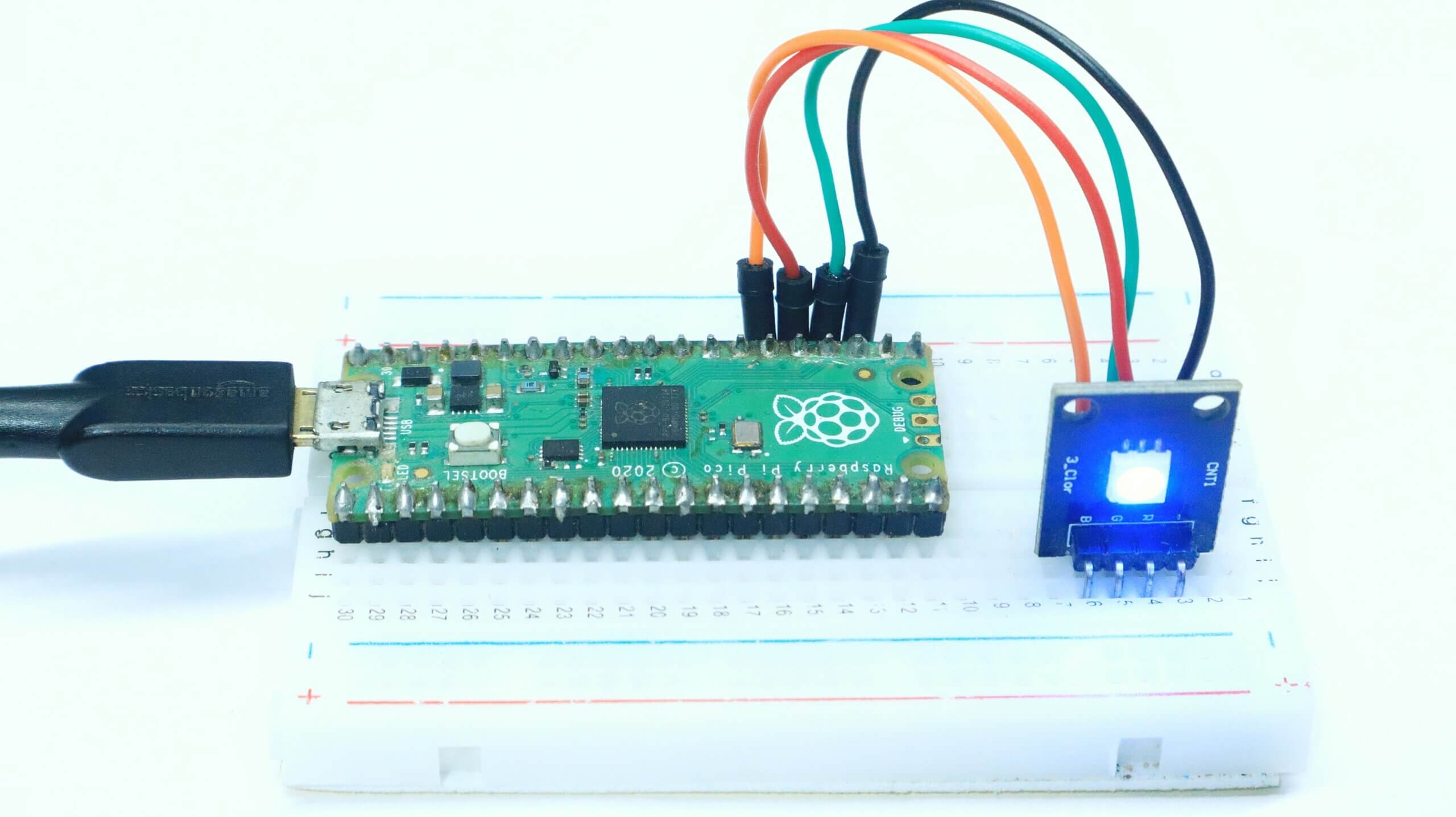

RGB LED Using a Raspberry Pi Pico with MicroPython

Table of Contents

Introduction

In this project, we’ll show you how to use an RGB LED Using a Raspberry Pi Pico board and control it using MicroPython. You’ll learn how to control the LED using the onboard processor, and how to control it using an external microcontroller. MicroPython is a lean and efficient implementation of the Python 3 programming language that includes a small subset of the Python standard library.

Arduino RGB LED work is fantastic! The colors and brightness are adjustable, and you can even create custom light patterns. I love how easy it is to use and how versatile it is for different projects.

Thank You NextPCB:

This project is successfully finished because of the help and sponsorship from NextPCB. Guys if you have a PCB project, please visit their website and get exciting discounts and coupons and more.

Only 0$ for 5-10pcs PCB Prototypes：Nextpcb.com/pcbprototype
Register and get $100 from NextPCB: Nextpcb.com/coupon

Why NextPCB

Most Efficient, Economic, Inventive PCB Solutions
Higher Quality
Lower Price
Faster Delivery

[the_ad id=”5042″]

Components Required

1. Raspberry Pi Pico Board
2. RGB LED
3. Breadboard
4. Jumper Wires

What is an RGB LED?

An RGB LED is a light-emitting diode (LED) emitting red, green, and blue light. These three colours can be mixed together in various ways to create different light colours. RGB LEDs are often used in electronic devices and appliances to create a variety of visual effects.

RGB LEDs can also be used to create unique lighting effects, and are often used in gaming keyboards and mice, as well as in computer case modding.

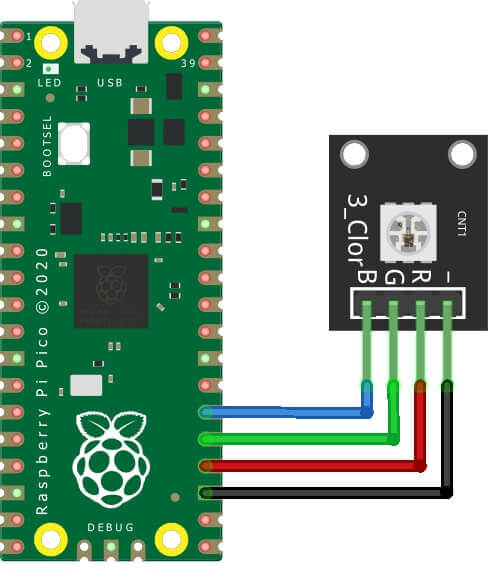

Circuit Diagram- RGB LED Using a Raspberry Pi Pico

There are a few things to keep in mind when using an RGB LED with an Arduino.

First, RGB LEDs typically have four pins: one for each colour, plus a common anode or cathode. Be sure to connect the correct wires to the correct pins! Second, when using an RGB LED with an Arduino

GPIOs 18-20 Wired to the Red, Green, and Blue LED Pins

MicroPython Code – RGB LED Using a Raspberry Pi Pico

The following code will be breathing each LED and using the PWM function, the brightness of each LED brightness increasing and decreasing. Getting Started With Raspberry Pi Pico With Thonny IDE – How to Program Pico

#
import time
from machine import Pin,PWM

pwm_pins = [18,19,20] # set PWM pins
pwms = [PWM(Pin(pwm_pins[0])),PWM(Pin(pwm_pins[1])),
                PWM(Pin(pwm_pins[2]))] # pwm array
[pwm.freq(1000) for pwm in pwms] # set pwm freqs

step_val = 64 # step value for 16-bit breathing
range_0 = [ii for ii in range(0,2**16,step_val)] # brightening
range_1 = [ii for ii in range(2**16,-step_val,-step_val)] # dimming

while True: # loop indefinitely
    # looping through red, blue, green breathing
    for pwm in pwms:
           for ii in range_0+range_1:
               pwm.duty_u16(ii) # set duty cycle out of 16-bits
               time.sleep(0.001) # sleep 1ms between pwm change
    # white pixel breathing (all three LEDs)
    for ii in range_0+range_1:
        for pwm in pwms:
            pwm.duty_u16(ii) # set duty cycle
        time.sleep(0.001) # wait 1ms
