Control PC Volume, Brightness Using Raspberry Pi Pico & Rotary Encoder

Table of Contents

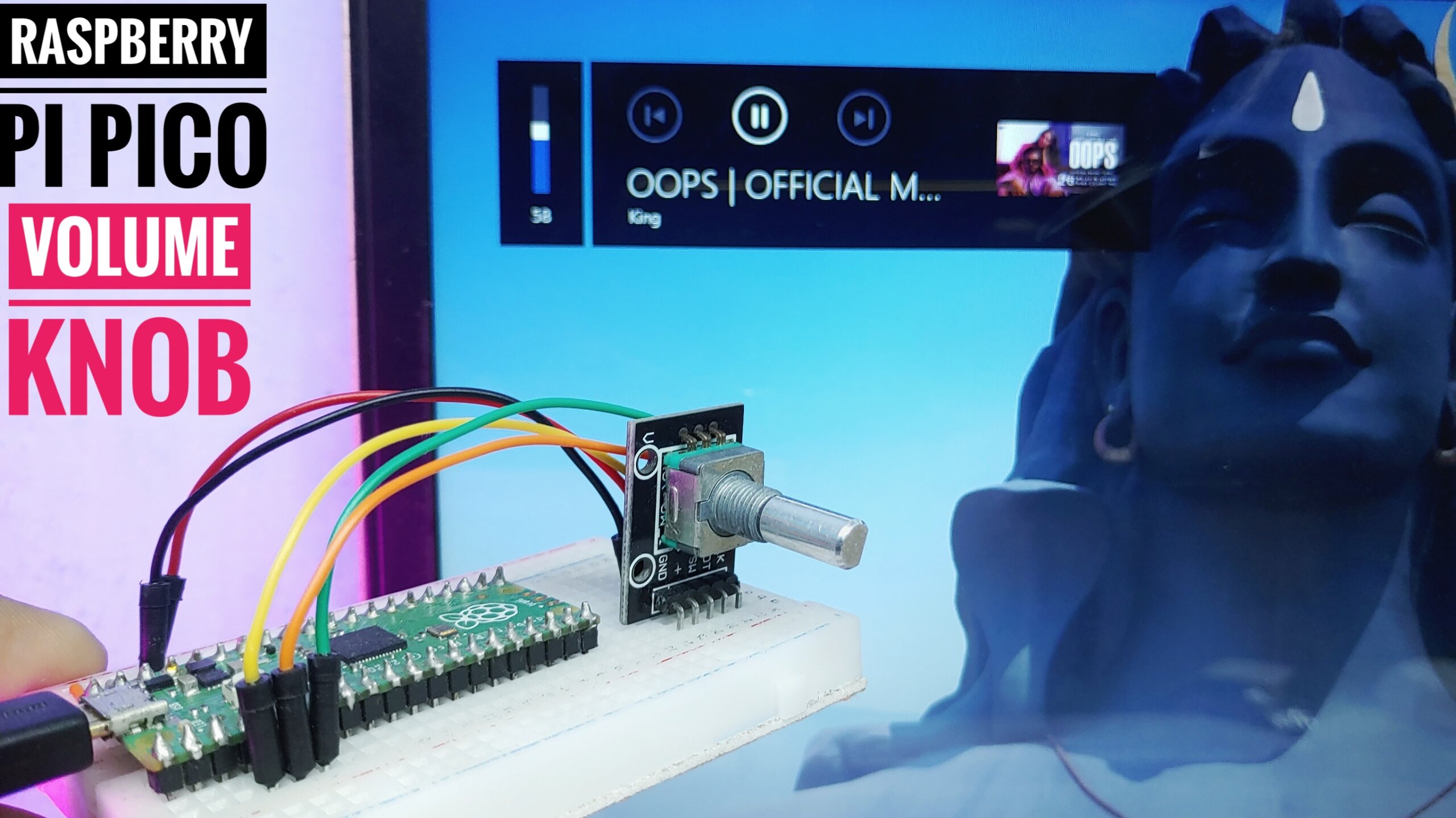

Hi friends, I hope you all are fine today in this tutorial I have got very good projects for you. we will show you how to make a Raspberry Pi Pico-based Volume knob which means you can control the volume or brightness of your personal computer with a Rotary Encoder & Raspberry Pi Pico.

In this text, we’ll be discussing how to create a volume control knob using a Raspberry Pi Pico. This is a fairly simple project that can be completed in just a few minutes. You’ll need a few basic materials, including a Raspberry Pi Pico, a Rotary encoder, and some jumper wires.

To keep things simple, Instead of other microcontrollers, I will use a Raspberry pi pico board. Not only is the board small, but it is cheap! Normally I pick mine up from Amazon.com for less than $4 USD

Required Material

What you will be needing:

What is Raspberry Pi Pico?

Raspberry Pi Pico is a microcontroller board based on the RP2040 chip from the Raspberry Pi Foundation that costs just $4. The Pico has two main components: the RP2040 chip and The RP2040 chip is a powerful Cortex-M0+ processor. It has a lot of features such as – 256KB of on-chip RAM – 2MB of on-chip Flash memory – A USB controller – GPIO pins – ADC pins – PWM pins – I2C and SPI pins The USB controller is used to connect the Pico to a computer. Let’s get started!

we will install CircuitPython on Pico and use a rotary encoder to create a control knob for Windows that can be scaled, scrolled left/right, volume control, sleep, etc.

Circuit diagram

The circuit diagram is simple because there are only two parts, but I made it with Fritzing, so I will post it. On the circuit diagram.

The connections are done as per the circuit diagram.

The power supply of the encoder is taken from Pico’s 5V.

Installing CircuitPython

CircuitPython is a programming language based on Python that makes it easy to program and interact with hardware. It is designed to be easy to use with beginner-friendly features and libraries that make it easy to get started with it.

This guide will show you How to set up a Raspberry Pi Pico and Code with CircuitPython on your Windows, Mac, or Linux computer.

Installing Libraries

Installing the Adafruit HID Library –

Go to releases
Download the zip (example: adafruit-circuitpython-hid-6.x-mpy-4.1.6.zip )
extract zip
copy the adafruit_hid from the lib folder in the extracted folder
paste it to the lib folder in the Pico which will now be called CIRCUITRY

Before starting make sure your board’s lib folder has the adafruit_hid library folder copied over.

Code the Raspberry Pi Pico Knonb

Adafruit guides using the Mu editor for using your CircuitPython code with the Raspberry Pi Pico. You can get more info in this guide. Alternatively, you can use any text editor that saves files in pico. In this tutorial, I’m using Thonny IDE.

Setting up Thonny:

Once you open Thonny go run> Select Interpreter
and make sure it is selected to CircuitPython(generic)
Type this command in the shell

help("modules")

1	help("modules")

If everything is working now you should see all the libraries that are already available.

CircuitPython Code

Copy the code below and paste it into Thonny IDE. Then, save it to your Raspberry Pi Pico as code.py

Note – This code is only for volume

import digitalio
import board
import usb_hid
from adafruit_hid.keyboard import Keyboard
from adafruit_hid.keycode import Keycode
from adafruit_hid.consumer_control import ConsumerControl
from adafruit_hid.consumer_control_code import ConsumerControlCode


CLK_PIN = board.GP4
DT_PIN = board.GP3
SW_PIN = board.GP2
clk_last = None
count = 0

keyboard = ConsumerControl(usb_hid.devices)

clk = digitalio.DigitalInOut(CLK_PIN)
clk.direction = digitalio.Direction.INPUT

dt = digitalio.DigitalInOut(DT_PIN)
dt.direction = digitalio.Direction.INPUT

sw = digitalio.DigitalInOut(SW_PIN)
sw.direction = digitalio.Direction.INPUT

def ccw():
    print("CCW")
    keyboard.send(ConsumerControlCode.VOLUME_DECREMENT)

def cw():
    print("CW")
    keyboard.send(ConsumerControlCode.VOLUME_INCREMENT)

while(1):
    clkState = clk.value
    if(clk_last !=  clkState):
        if(dt.value != clkState):
            cw()
        else:
            ccw()
    clk_last = clkState;

import digitalio

import board

import usb_hid

from adafruit_hid.keyboard import Keyboard

from adafruit_hid.keycode import Keycode

from adafruit_hid.consumer_control import ConsumerControl

from adafruit_hid.consumer_control_code import ConsumerControlCode

CLK_PIN = board.GP4

DT_PIN = board.GP3

SW_PIN = board.GP2

clk_last = None

count = 0

keyboard = ConsumerControl(usb_hid.devices)

clk = digitalio.DigitalInOut(CLK_PIN)

clk.direction = digitalio.Direction.INPUT

dt = digitalio.DigitalInOut(DT_PIN)

dt.direction = digitalio.Direction.INPUT

sw = digitalio.DigitalInOut(SW_PIN)

sw.direction = digitalio.Direction.INPUT

def ccw():

print("CCW")

keyboard.send(ConsumerControlCode.VOLUME_DECREMENT)

def cw():

print("CW")

keyboard.send(ConsumerControlCode.VOLUME_INCREMENT)

while(1):

clkState = clk.value

if(clk_last != clkState):

if(dt.value != clkState):

cw()

else:

ccw()

clk_last = clkState;

Note: To run any code on the raspberry pi Pico automatically on start-up in CircuitPython the file must be named code.py

# SPDX-FileCopyrightText: 2021 Tim C for Adafruit Industries
# SPDX-License-Identifier: MIT
import digitalio
import board
import usb_hid
import time
from adafruit_hid.keyboard import Keyboard
from adafruit_hid.mouse import Mouse
from adafruit_hid.keycode import Keycode
from adafruit_hid.consumer_control import ConsumerControl
from adafruit_hid.consumer_control_code import ConsumerControlCode

print(" Raspberry Pi Pico multi function knob (DiY Projects Lab) ")

SW_PIN = board.GP2
DT_PIN = board.GP3
CLK_PIN = board.GP4

clk_last = None
count = 0
totalMode = 3
currentMode = 0

cc = ConsumerControl(usb_hid.devices)
mouse = Mouse(usb_hid.devices)
keyboard = Keyboard(usb_hid.devices)


clk = digitalio.DigitalInOut(CLK_PIN)
clk.direction = digitalio.Direction.INPUT

dt = digitalio.DigitalInOut(DT_PIN)
dt.direction = digitalio.Direction.INPUT

sw = digitalio.DigitalInOut(SW_PIN)
sw.direction = digitalio.Direction.INPUT
sw.pull = digitalio.Pull.UP

def millis():
    return time.monotonic() * 1000

def ccw():
    print("CCW")

    if (currentMode == 0):    # Mac brightness down

        cc.send(ConsumerControlCode.BRIGHTNESS_DECREMENT)

    elif(currentMode ==1):    # Mac horizontal scroll right
        keyboard.press(Keycode.SHIFT)
        mouse.move(wheel=-1)
        keyboard.release(Keycode.SHIFT)

    elif(currentMode == 2):   # Volume decrement
        cc.send(ConsumerControlCode.VOLUME_DECREMENT)

def cw():
    print("CW")
    if (currentMode == 0):     # Windows brightness up
                  cc.send(ConsumerControlCode.BRIGHTNESS_INCREMENT)

    elif(currentMode ==1):     # Mac horizontal scroll left
        keyboard.press(Keycode.SHIFT)
        mouse.move(wheel=1)
        keyboard.release(Keycode.SHIFT)

    elif(currentMode == 2):     # Volume increment
        cc.send(ConsumerControlCode.VOLUME_INCREMENT)

def long_press():
    #Mac sleep: CMD + OPT + EJECT
    keyboard.press(Keycode.ALT, Keycode.COMMAND)
    cc.send(ConsumerControlCode.EJECT)
    keyboard.release_all()

while(1):
    clkState = clk.value
    if(clk_last !=  clkState):
        if(dt.value != clkState):
            cw()
        else:
            ccw()
    if (sw.value == 0):
        pressTime = millis()
        time.sleep(0.2)
        longPress = False
        while(sw.value == 0):
            if(millis() - pressTime > 1000 and not longPress):
                print("longPress")
                longPress = True
                long_press()


        if (not longPress):
            currentMode += 1
            currentMode %= totalMode
            print("Mode: " + str(currentMode))

    clk_last = clkState

# SPDX-FileCopyrightText: 2021 Tim C for Adafruit Industries

# SPDX-License-Identifier: MIT

import digitalio

import board

import usb_hid

import time

from adafruit_hid.keyboard import Keyboard

from adafruit_hid.mouse import Mouse

from adafruit_hid.keycode import Keycode

from adafruit_hid.consumer_control import ConsumerControl

from adafruit_hid.consumer_control_code import ConsumerControlCode

print(" Raspberry Pi Pico multi function knob (DiY Projects Lab) ")

SW_PIN = board.GP2

DT_PIN = board.GP3

CLK_PIN = board.GP4

clk_last = None

count = 0

totalMode = 3

currentMode = 0

cc = ConsumerControl(usb_hid.devices)

mouse = Mouse(usb_hid.devices)

keyboard = Keyboard(usb_hid.devices)

clk = digitalio.DigitalInOut(CLK_PIN)

clk.direction = digitalio.Direction.INPUT

dt = digitalio.DigitalInOut(DT_PIN)

dt.direction = digitalio.Direction.INPUT

sw = digitalio.DigitalInOut(SW_PIN)

sw.direction = digitalio.Direction.INPUT

sw.pull = digitalio.Pull.UP

def millis():

return time.monotonic() * 1000

def ccw():

print("CCW")

if (currentMode == 0): # Mac brightness down

cc.send(ConsumerControlCode.BRIGHTNESS_DECREMENT)

elif(currentMode ==1): # Mac horizontal scroll right

keyboard.press(Keycode.SHIFT)

mouse.move(wheel=-1)

keyboard.release(Keycode.SHIFT)

elif(currentMode == 2): # Volume decrement

cc.send(ConsumerControlCode.VOLUME_DECREMENT)

def cw():

print("CW")

if (currentMode == 0): # Windows brightness up

cc.send(ConsumerControlCode.BRIGHTNESS_INCREMENT)

elif(currentMode ==1): # Mac horizontal scroll left

keyboard.press(Keycode.SHIFT)

mouse.move(wheel=1)

keyboard.release(Keycode.SHIFT)

elif(currentMode == 2): # Volume increment

cc.send(ConsumerControlCode.VOLUME_INCREMENT)

def long_press():

#Mac sleep: CMD + OPT + EJECT

keyboard.press(Keycode.ALT, Keycode.COMMAND)

cc.send(ConsumerControlCode.EJECT)

keyboard.release_all()

while(1):

clkState = clk.value

if(clk_last != clkState):

if(dt.value != clkState):

cw()

else:

ccw()

if (sw.value == 0):

pressTime = millis()

time.sleep(0.2)

longPress = False

while(sw.value == 0):

if(millis() - pressTime > 1000 and not longPress):

print("longPress")

longPress = True

long_press()

if (not longPress):

currentMode += 1

currentMode %= totalMode

print("Mode: " + str(currentMode))

clk_last = clkState

Now, save the file. You can use any location and any name, but the filename should end with .py

Next step: Config interpreter
select CircuitPython as an interpreter
And select the target board for Raspberry pi pico
Press “Run” to begin executing the code

HID Keyboard Basics

If you want to modify the function and use it, This guide page has a great intro to CircuitPython HID Keyboard. and if you register many functions, the process will be difficult. For even more details, check out the documentation at https://circuitpython.readthedocs.io/projects/hid/en/latest/ which has all of the keycodes and media codes you can use.
